Transforming Legacy Systems: An AI-Powered ArchiMate Blueprint for Cloud Migration
Transitioning from monolithic legacy systems to agile, scalable cloud environments is one of the most complex challenges in modern enterprise architecture. Without a structured approach, such initiatives risk falling into technical debt, security vulnerabilities, and operational chaos. This is where the Visual Paradigm AI Chatbot steps in—not as a passive diagram generator, but as a collaborative modeling expert that turns high-level goals into precise, actionable architecture.
From Vision to Diagram: A Collaborative Modeling Journey

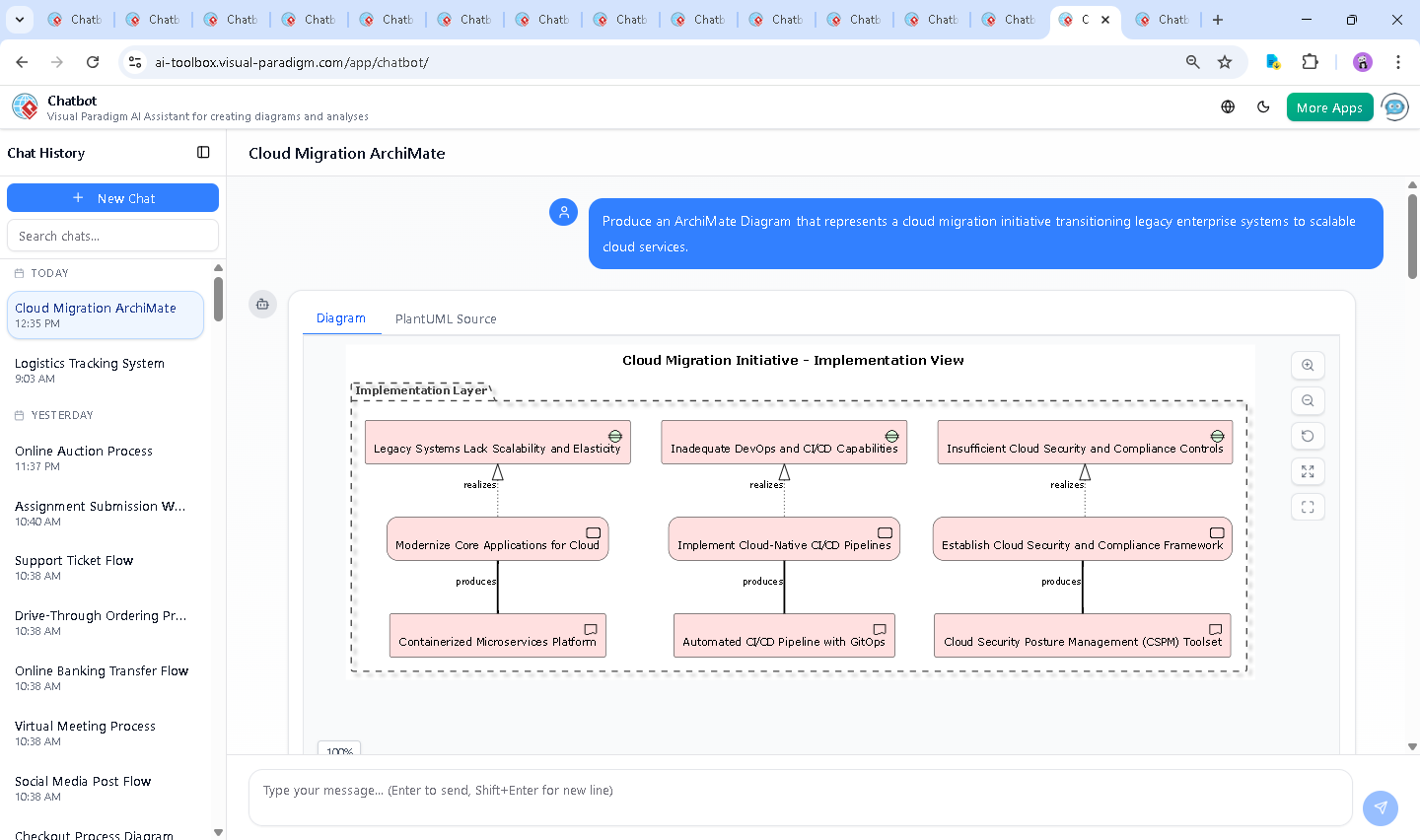

The journey began with a simple prompt: “Produce an ArchiMate Diagram that represents a cloud migration initiative transitioning legacy enterprise systems to scalable cloud services.” Within seconds, the AI Chatbot delivered a fully structured ArchiMate diagram using PlantUML syntax, grounded in the Implementation View of the ArchiMate framework.
But the real value emerged not in the initial output, but in the conversation that followed. When asked to explain the Cloud Security Posture Management (CSPM) Toolset deliverable, the AI didn’t just define the term—it contextualized it within the migration lifecycle, detailing how CSPM mitigates real-world risks like public S3 buckets and IAM misconfigurations.
Each follow-up—like “Explain this branch” or “Can you refine the logic?”—was met with layered insights: from compliance enforcement to automated remediation workflows. The AI didn’t just answer—it educated, clarified, and evolved the model in real time, demonstrating its role as a strategic advisor.
Decoding the Diagram: The Logic Behind the Architecture
The resulting ArchiMate diagram maps a clear path from identified gaps to actionable work packages and tangible deliverables. Here’s how the logic unfolds:
- Implementation Gaps highlight core pain points: lack of scalability, missing DevOps pipelines, and weak security controls.
- Implementation Work Packages represent the strategic initiatives to close these gaps—modernizing applications, building CI/CD pipelines, and establishing security frameworks.
- Implementation Deliverables show the concrete outcomes: containerized microservices, GitOps-driven CI/CD pipelines, and the CSPM toolset.
The Rel_Realization_Up relationships illustrate how each work package directly addresses a specific gap. The Rel_Association_Down links show how each work package produces a deliverable—making the value chain transparent and traceable.
By using the Implementation View, the diagram emphasizes execution, accountability, and progress tracking—critical for stakeholders who need to see what’s being done and why it matters.
Conversational Intelligence in Action
The true power of the Visual Paradigm AI Chatbot lies in its ability to act as a modeling partner. After delivering the initial diagram, the user asked for a deeper dive into the CSPM deliverable. Instead of a static definition, the AI provided:
- A clear explanation of CSPM’s role in cloud security
- A breakdown of key capabilities (inventory, policy enforcement, remediation)
- Real-world use cases from migration projects
- Comparison of leading tools (Prisma Cloud, Wiz, AWS Config, etc.)
- An invitation to expand the diagram into other viewpoints
This level of contextual intelligence transforms the chatbot from a tool into a mentor—ensuring that every model is not just visually accurate, but architecturally sound.
More Than ArchiMate: A Unified Modeling Platform
While this example focuses on ArchiMate, the Visual Paradigm AI Chatbot is built to support a full spectrum of modeling standards. Whether you’re designing system behavior with UML, modeling complex systems with SysML, or visualizing software architecture with the C4 Model, the AI adapts seamlessly.
It understands the nuances of each standard—knowing when to use a dependency vs. a realization, when to apply a composition vs. an aggregation, and how to structure views for maximum clarity. This versatility makes it the only platform that can serve as a unified, AI-powered visual modeling environment across IT and enterprise architecture domains.
Empower Your Architecture with AI, Not Guesswork
Cloud migration isn’t just about technology—it’s about strategy, governance, and execution. The Visual Paradigm AI Chatbot ensures every diagram is not just visually compelling, but strategically grounded in real-world constraints and best practices.
By combining natural language interaction with deep architectural knowledge, it turns abstract ideas into executable blueprints—faster, smarter, and more accurate.
Ready to transform your next initiative? Explore the live session and see how the AI Chatbot can help you design with confidence.
