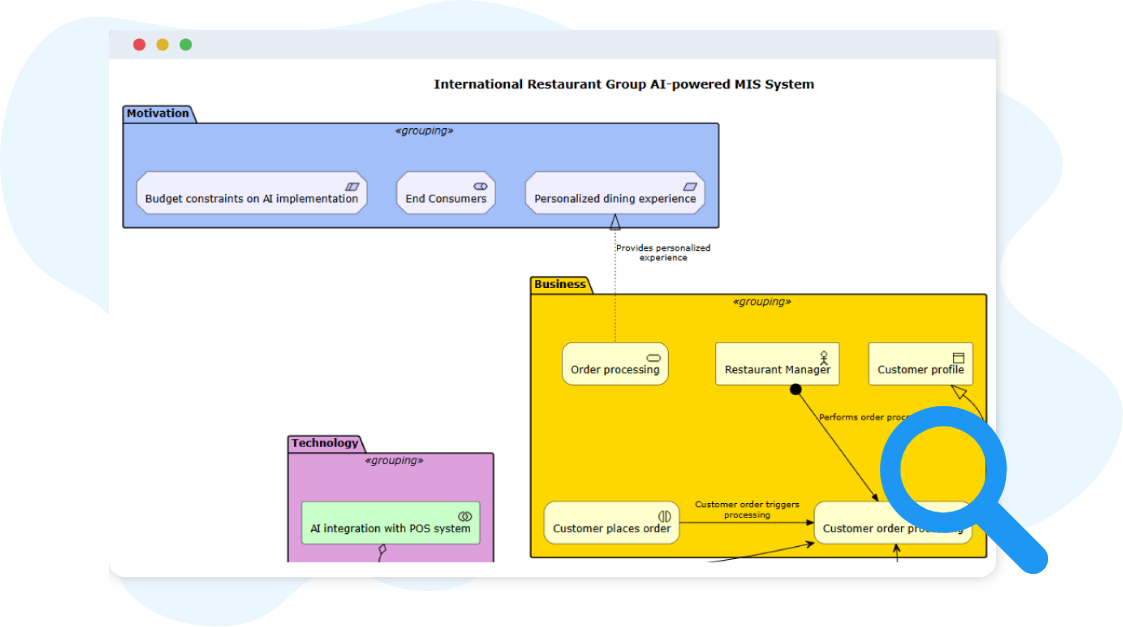

ArchiMate Diagram
The ArchiMate Diagram models enterprise architecture, linking business processes, applications, and technology layers for holistic analysis.

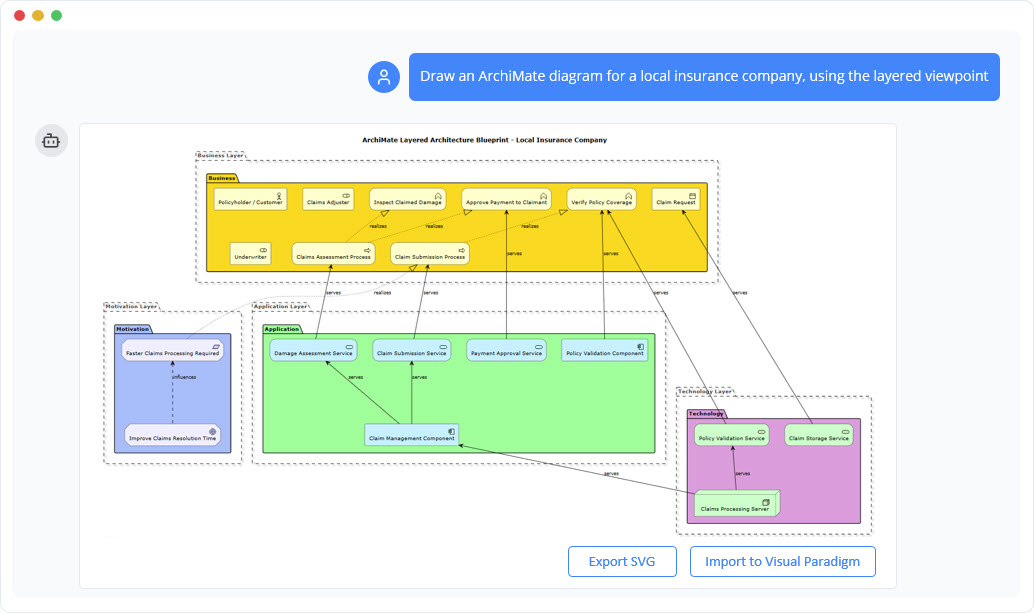

Instant ArchiMate Model Generation
The AI chatbot turns complex enterprise concepts into clear ArchiMate models in moments. You can describe your business capabilities, application landscape, or technology setup in plain language, and the AI converts your description into a structured, multi-layer model. Each element is created using proper ArchiMate notation, ensuring accuracy while removing the need to manually look up shapes or relationships.

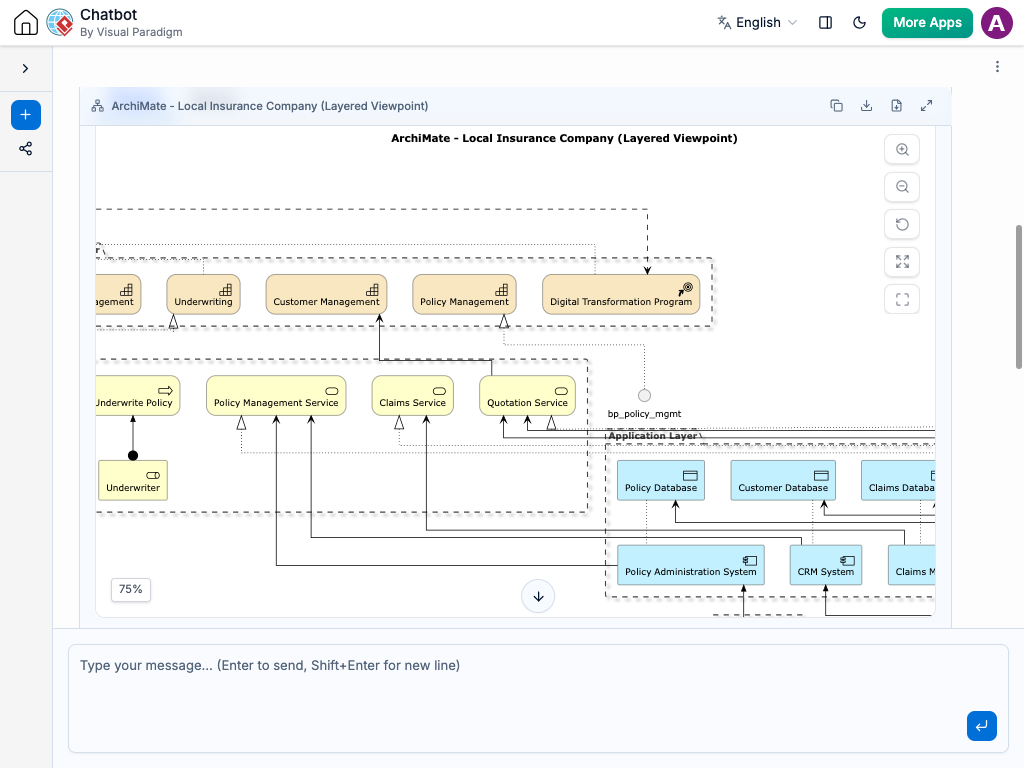

Shape and Extend Architecture Through Dialogue
Enterprise architectures often evolve as new insights emerge. With conversational refinement, you can adjust your model instantly—add missing application components, update business processes, introduce infrastructure nodes, or generate specific viewpoints for different teams. This interactive approach helps you explore alternatives, validate alignment across layers, and maintain a living architectural picture that adapts as the organization grows.
Benefits of Creating ArchiMate Diagrams with the AI Chatbot
Generates full models across Business, Application, and Technology layers from simple text.
Automatically applies correct ArchiMate symbols, colors, and relationship rules.
Supports quick creation of viewpoints tailored to each stakeholder’s needs.
Helps teams visualize dependencies, flows, and strategic alignment at scale.
Streamlines architecture governance through clear, consistent modeling.
Reduces manual diagramming time, letting architects focus on analysis and decision-making.
Examples of Generating ArchiMate Diagram
Use simple text prompts to generate this diagram in seconds. Here are a few examples to get you started:

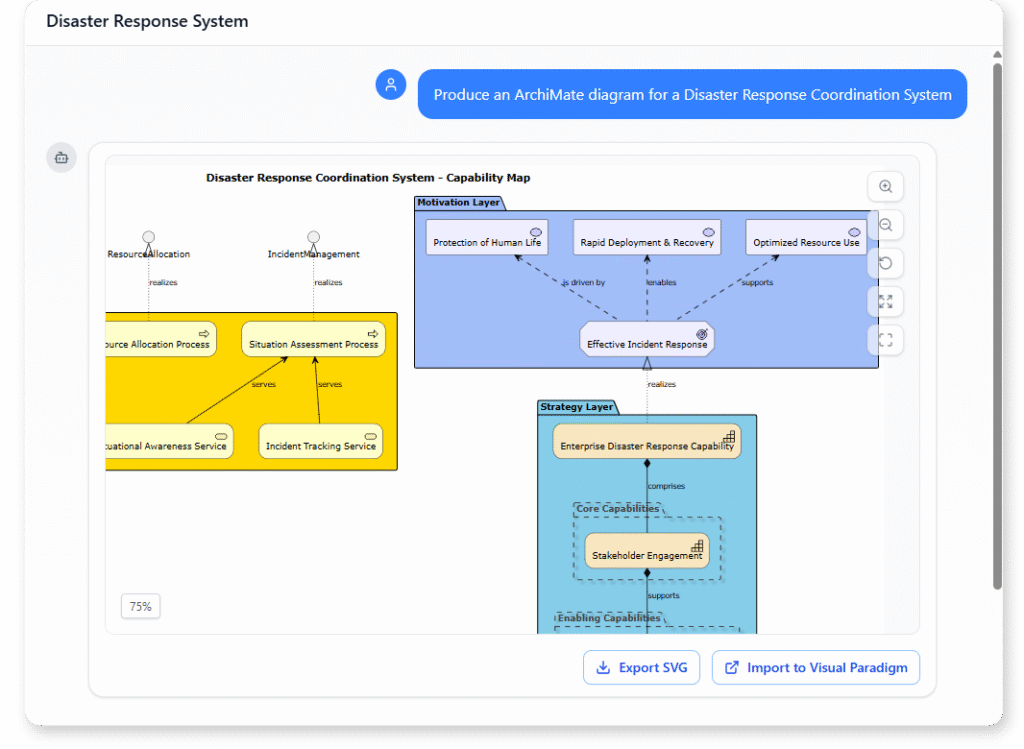

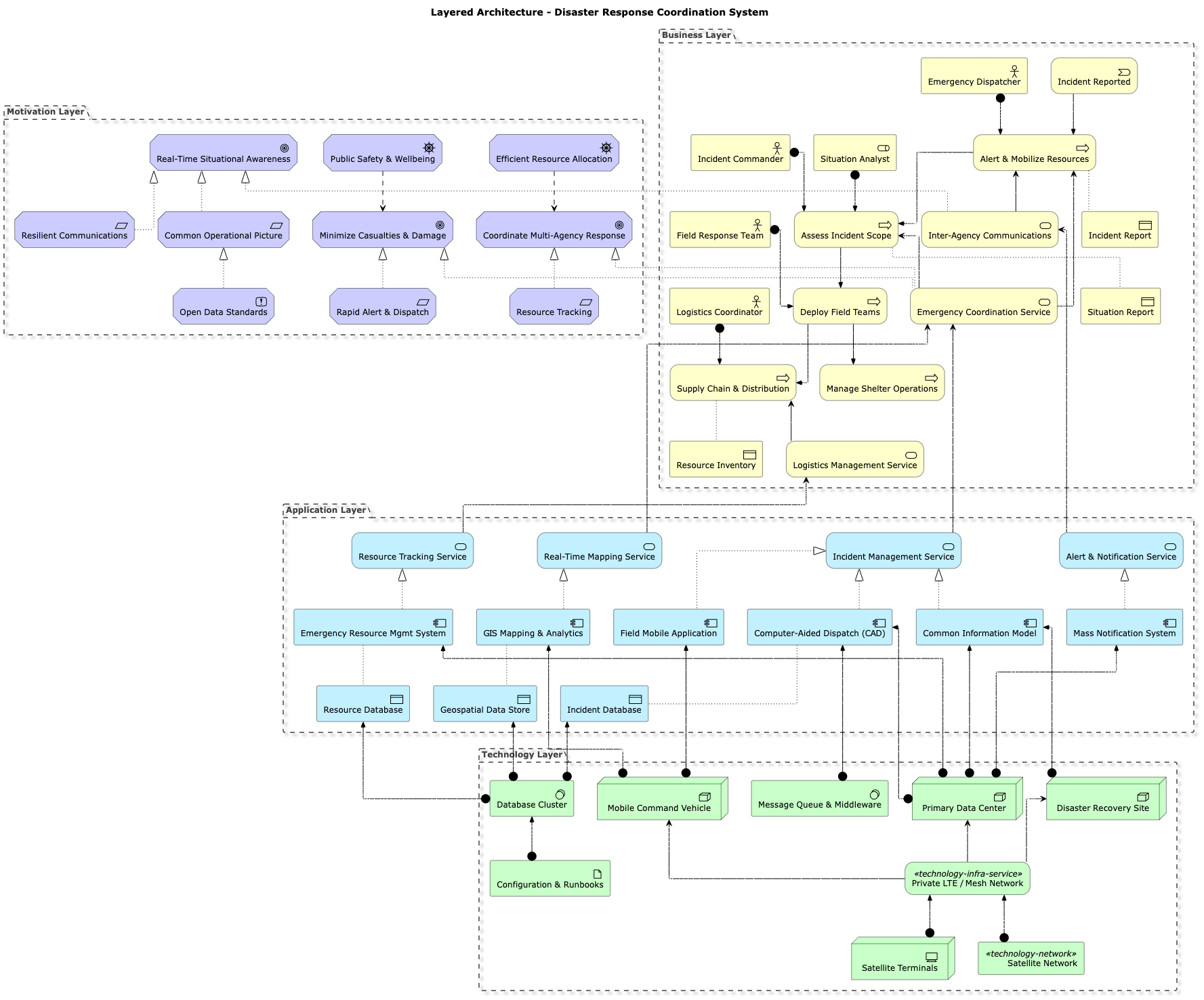

Disaster Response Coordination System
“Produce an ArchiMate diagram for a Disaster Response Coordination System. “

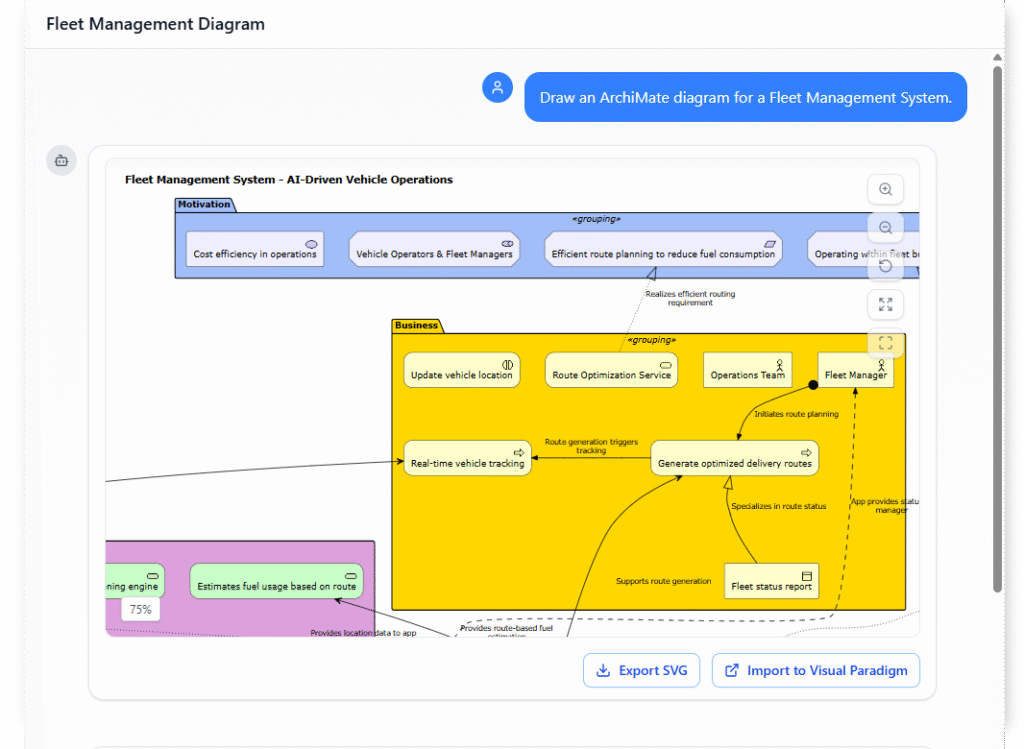

Fleet Management System
“Draw an ArchiMate diagram for a Fleet Management System.”

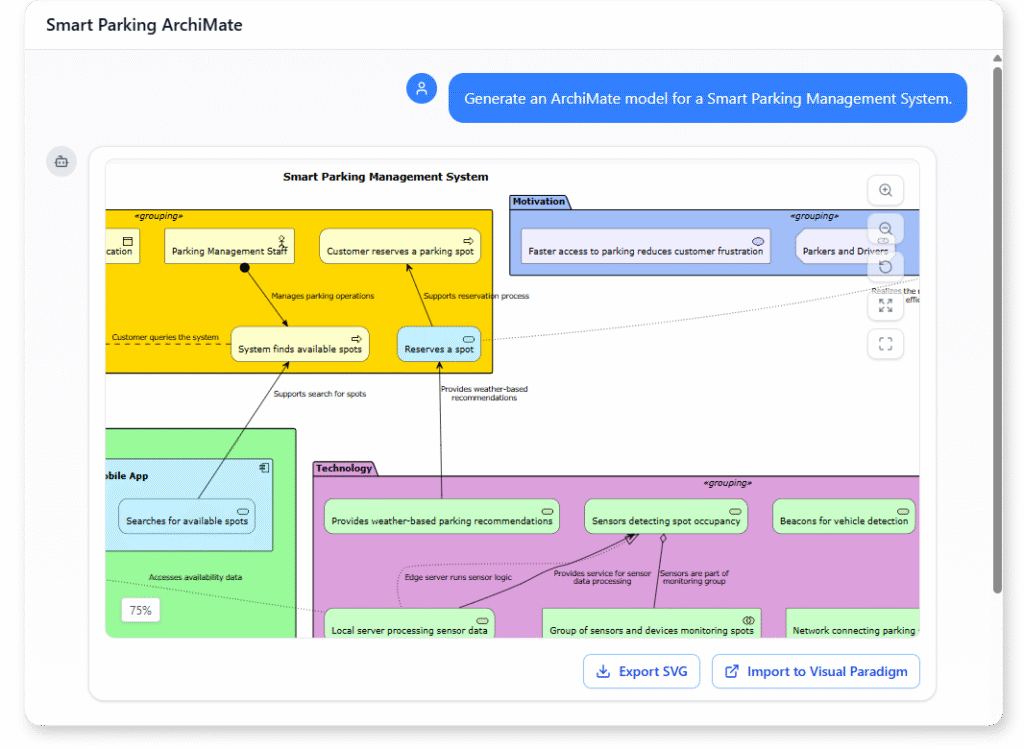

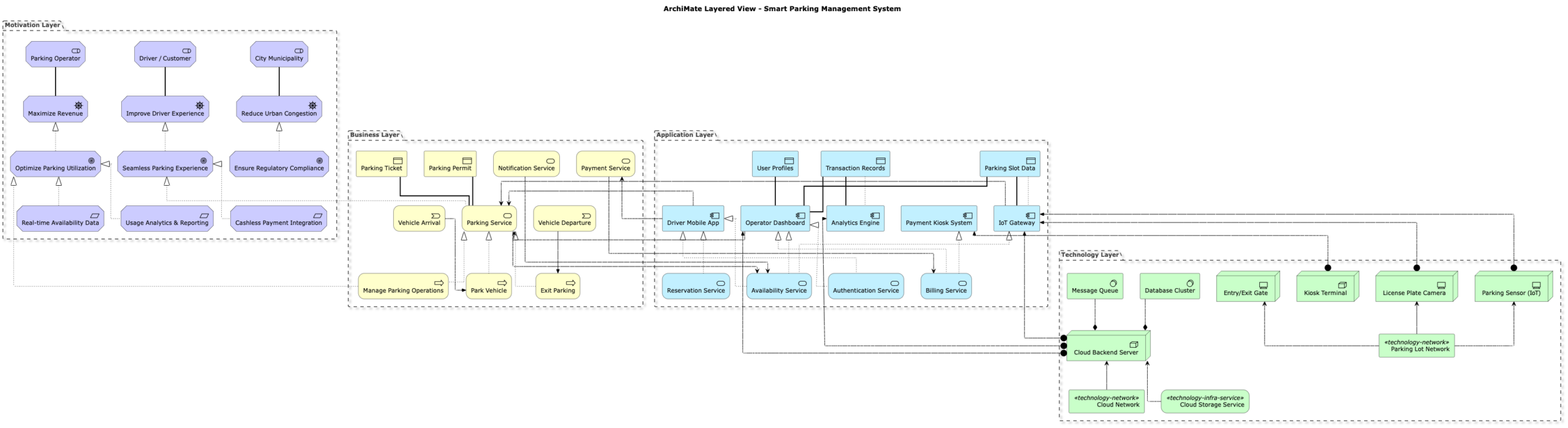

Smart Parking Management System
“Generate an ArchiMate model for a Smart Parking Management System.”
What Is an ArchiMate Diagram?
An ArchiMate diagram is a standardized visual model used to describe how an organization’s business, applications, and technology work together. It provides a unified language that helps teams understand capabilities, processes, systems, and infrastructure in one integrated view.
By connecting concepts across layers, ArchiMate diagrams reveal how strategic goals translate into operational structures. This makes it easier to analyze dependencies, identify gaps, and guide enterprise-wide change with clarity and precision.
Key Concepts
ArchiMate Diagram
An ArchiMate diagram visualizes enterprise architecture by modeling relationships among business, application, technology, and physical layers. It helps stakeholders understand strategy, processes, systems, and infrastructure at a high level.
Layer
A layer groups elements by their nature and abstraction. Layers are ordered to reflect dependencies:
Strategy → Motivation → Business → Application → Technology → Physical → Implementation
Layers help structure enterprise architecture models from high-level strategy to detailed implementation.
Business Layer
Models the organizational structure and operations.
Key elements:
Business Actor – An entity that performs behavior (person, group, or system). Example: Sales Department.
Business Role – Responsibility within an organization. Example: Account Manager.
Business Collaboration – Interaction between two or more roles/actors. Example: Marketing and Sales teams working together on a campaign.
Business Interface – Point where services are accessed. Example: Customer service portal.
Business Process – Sequence of activities to achieve a goal. Example: Order fulfillment process.
Business Function – Capability executed within the organization. Example: Inventory management.
Business Interaction – Exchange between two business roles or actors. Example: Order processing interaction between customer and supplier.
Business Event – Trigger that initiates behavior. Example: Customer places an order.
Business Service – Deliverable to internal or external customers. Example: Loan approval service.
Business Object – Information used or produced by processes. Example: Invoice document.
Business Contract – Formal agreement defining obligations. Example: Supplier contract.
Business Representation – View of a business object from a specific perspective. Example: Summary of a customer profile.
Business Product – Offering delivered to customers. Example: Mobile phone plan.
Technology Layer
Models infrastructure and hardware that supports applications.
Key elements:
Technology Node – Physical or virtual computing resource. Example: Web server.
Technology Device – Specific hardware unit. Example: Laptop, router.
Technology SystemSoftware – Platform software or middleware. Example: Database server software.
Technology Collaboration – Interaction between technology elements. Example: Server cluster working together.
Technology Interface – Access point for services. Example: REST API endpoint.
Technology Path – Connection between nodes. Example: Network cable or VPN connection.
Technology CommunicationNetwork – Network infrastructure connecting nodes. Example: Corporate LAN.
Technology Function – Behavior of technology elements. Example: Data encryption function.
Technology Process – Sequence of technical activities. Example: Backup process.
Technology Interaction – Coordination of technology functions. Example: Data replication between servers.
Technology Event – Trigger in technology operations. Example: Server failure alert.
Technology Service – Capability provided by technology. Example: Cloud storage service.
Technology Artifact – Physical or digital item used/deployed. Example: Executable file.
Implementation & Migration Layer
Shows how architecture is realized and transformed over time.
Key elements:
Implementation WorkPackage – Bundle of tasks to implement elements. Example: Software development sprint.
Implementation Deliverable – Output of work packages. Example: New application module.
Implementation Event – Trigger in implementation. Example: Release date milestone.
Implementation Plateau – Stable architecture state at a time. Example: System fully deployed for a quarter.
Implementation Gap – Difference between current and target architecture. Example: Missing cloud capability for analytics.
ArchiMate Viewpoint
A viewpoint defines the perspective or focus of a diagram, e.g., business, application, or technology. It guides which elements are shown to address specific stakeholder concerns.
Motivation Layer
Captures why the organization exists and acts, including goals, drivers, and constraints.
Key elements:
Resource (Strategy) – Tangible or intangible assets that the organization owns or can leverage, such as money, patents, or knowledge. Example: Company budget for R&D.
Capability (Strategy) – The organization’s ability to perform activities to achieve objectives. Example: Customer support capability.
Course of Action (Strategy) – A plan or initiative to achieve goals. Example: Launching a new product line.
Stakeholder – A person, group, or organization with an interest in architecture outcomes. Example: Investors or regulatory bodies.
Driver – A factor motivating change or decision. Example: Market competition.
Assessment – Evaluation of the current state or performance. Example: Risk assessment of IT infrastructure.
Outcome – Desired result of a strategy or initiative. Example: Increased market share.
Principle – Guiding rule or belief for decisions. Example: “Customer privacy is always protected.”
Requirement – Condition that must be met. Example: System must process 10,000 transactions per second.
Constraint – Restriction limiting solution choices. Example: Budget or regulatory limits.
Meaning – The intended interpretation of an element or concept. Example: Definition of “customer” in context.
Value – Benefit provided to stakeholders. Example: Fast delivery increases customer satisfaction.
Application Layer
Represents software applications and their behavior.
Key elements:
Application Component – Modular software unit. Example: Payment processing module.
Application Collaboration – Interaction among components to perform functions. Example: CRM system working with ERP.
Application Interface – Access point exposing services to other applications. Example: API for inventory system.
Application Function – Internal behavior or operation of a component. Example: Calculate shipping cost.
Application Interaction – Coordination between functions/components. Example: Payment function triggering invoice generation.
Application Process – End-to-end workflow within software. Example: Online checkout process.
Application Event – Trigger affecting applications. Example: Payment completed.
Application Service – Provided functionality. Example: Authentication service.
Application DataObject – Information processed or stored. Example: Customer record.
Physical Layer
Represents tangible assets and logistics.
Key elements:
Physical Equipment – Machines or devices used in operations. Example: Manufacturing robot.
Physical Facility – Buildings or locations. Example: Factory or warehouse.
Physical DistributionNetwork – Channels for delivering goods/services. Example: Delivery trucks.
Physical Material – Physical resources consumed or produced. Example: Raw materials.
