Designing a Secure User Registration Flow with AI-Powered Precision
Creating a reliable user registration process for a mobile application involves more than just capturing form data—it demands robust validation, secure authentication, and clear error feedback. Traditional modeling tools often require deep technical expertise and time-consuming diagramming. With Visual Paradigm’s AI Chatbot, this process becomes a collaborative dialogue where the system learns from your intent and evolves your design in real time.
From Concept to Clarity: An Interactive Modeling Journey

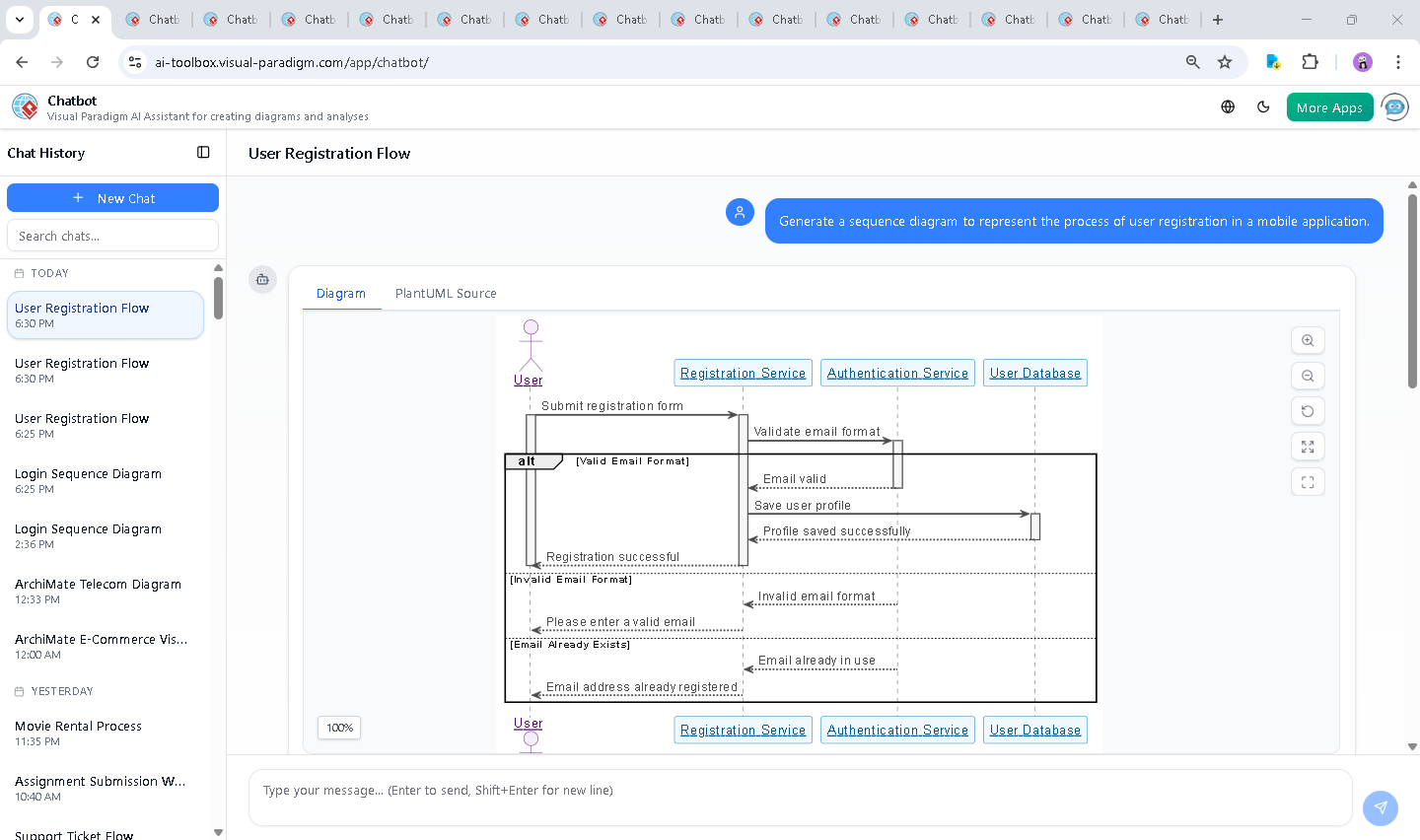

The journey began with a simple request: “Generate a sequence diagram to represent the process of user registration in a mobile application.” The Visual Paradigm AI Chatbot immediately responded with a fully structured UML Sequence Diagram, using clean syntax and professional styling. It modeled the core flow—user submission, email validation, database persistence—and included conditional logic using the alt construct to handle invalid inputs.
But the conversation didn’t stop there. Recognizing that password strength is a critical security factor, the user asked: “Can you add error handling for a weak password in the registration process?” The AI responded with precision—inserting a new alt branch under the password validation step, specifying requirements like minimum length, numbers, and special characters. This wasn’t a generic fix; it reflected real-world security best practices and was seamlessly integrated into the existing flow.
Each refinement was handled with context awareness. The AI didn’t just append logic—it restructured the diagram to maintain clarity, ensuring that the validation steps remained logically grouped and visually consistent. This is the essence of the Visual Paradigm AI Chatbot: not a diagram generator, but a modeling partner that understands the semantics of your requirements.
Visualizing the Final Flow
Decoding the Logic: Why This Structure Works
The final sequence diagram captures a secure, user-centric registration flow with layered validation:
- Initial Submission: The user submits their details via the mobile app, triggering the Registration Service.
- Email Validation: The Authentication Service checks for proper format. If invalid, the user receives immediate feedback.
- Password Strength Check: Only after a valid email is confirmed does the system evaluate password complexity. This prevents unnecessary processing if the email is malformed.
- Database Persistence: If both checks pass, the user profile is saved in the User Database, and a success message is returned.
- Error Handling: All failure paths are clearly defined—invalid email, existing email, weak password—each with a tailored response to guide the user.
By using the alt construct for conditional branches, the diagram remains readable and aligned with UML standards. The visual hierarchy—indicated by activation bars and lifelines—shows exactly when each component is active, making it easy to trace the flow and identify potential bottlenecks or failure points.
Conversational Intelligence in Action
The true power of the AI Chatbot lies in its ability to evolve with the user’s needs. After the initial diagram was generated, the follow-up request for password validation wasn’t treated as a separate task—it was integrated into the existing logic with a deep understanding of the system’s architecture.
What makes this interaction stand out is the chat history itself: each message builds on the previous one, with the AI maintaining context and ensuring consistency. For example, when the user asked to refine the logic, the AI didn’t restart from scratch—it enhanced the existing flow, preserving the original structure while adding new layers of validation.
More Than Just Sequence Diagrams: A Full Modeling Suite
While this example focuses on a Sequence Diagram, the Visual Paradigm AI Chatbot is not limited to one standard. It supports a full spectrum of modeling languages, including UML, ArchiMate for enterprise architecture, SysML for systems engineering, C4 Model for software architecture, and even Mind Maps for brainstorming and process visualization.
This versatility means you can start with a high-level idea—like a mobile app registration—and transition seamlessly to detailed component interactions, organizational structures, or system behavior models—all within a single conversational interface. Whether you’re a developer, architect, or product designer, the AI Chatbot adapts to your role and language, turning abstract concepts into precise, shareable models.
Shape Your System with Confidence
Designing secure, scalable user flows doesn’t have to be complex. With Visual Paradigm’s AI Chatbot, you gain a collaborative modeling expert that listens, refines, and delivers professional-grade diagrams—fast, accurate, and fully aligned with industry standards.
Start your next modeling session today and experience how AI transforms the way you design systems.
