Enterprise Architecture (EA) is the discipline of strategically aligning a company’s business, data, applications, and technology with its overarching goals. In a world of increasing complexity, visualizing this alignment is essential. ArchiMate, an open and independent modeling language from The Open Group, provides a universal standard for this task. However, its richness and rigor can also make it challenging to master. This is where an AI assistant emerges as a transformative partner, democratizing enterprise architecture and empowering organizations to design their future with unprecedented clarity and speed.
This guide introduces the ArchiMate framework and shows how AI is revolutionizing the practice of enterprise architecture.
What is ArchiMate?
ArchiMate is not just another diagramming notation; it’s a comprehensive language designed to provide a holistic and integrated view of an enterprise. It is structured into a set of core layers.
The ArchiMate Core Layers
- Business Layer (The “Why”): Describes business processes, services, functions, and organizational structures. It models actors, roles, and the value they provide or consume.
- Application Layer (The “How”): Models the software applications that support the business. It describes application components, the services they provide, and the data they manage.
- Technology Layer (The “With What”): Describes the hardware and software infrastructure that runs the applications. It includes servers, networks, devices, and system software.
Beyond these layers, ArchiMate includes elements for Strategy, Motivation (goals, drivers), and Implementation & Migration. The true power lies in the standardized relationships that connect elements within and across these layers, allowing architects to perform powerful impact analysis.
Why Use AI for ArchiMate Modeling?
Creating ArchiMate models has traditionally been the domain of specialist architects using complex tools. An AI co-pilot fundamentally changes this landscape.
- Master Complexity Instantly: The ArchiMate specification is extensive. An AI acts as a built-in expert, ensuring every diagram you create is syntactically correct and compliant with the standard. You describe the relationship; the AI applies the correct notation.
- Model at the Speed of Thought: Manually drawing and connecting elements across multiple layers is slow. With an AI, you can describe a complex architectural scenario in plain English and see a complete, multi-layered diagram generated in seconds.
- Generate Viewpoints on Demand: Stakeholders need views relevant to their concerns (e.g., Application Usage, Infrastructure). With an AI, you can simply ask for what you need: “Generate a Technology Usage viewpoint showing which applications run on our production servers.”
- Perform Intelligent Impact Analysis: This is the transformative capability. Once you have a model, you can query it: “AI, show me all the business processes that will be affected if we decommission the ‘Legacy Billing System’.” The AI can instantly visualize the impact of a proposed change.
Common Use Cases for ArchiMate Diagrams
ArchiMate is used to solve critical business and technology challenges.
- Digital Transformation: Model the “as-is” and “to-be” states of your architecture to create a clear roadmap for modernization and digital initiatives.
- Cloud Migration Strategy: Model and compare different cloud migration strategies (e.g., re-hosting, re-platforming), visualizing the complexity and dependencies of each approach.
- Mergers & Acquisitions (M&A) Integration: Rapidly model the business capabilities and application landscapes of two merging companies to identify overlaps, gaps, and plan an effective integration strategy.
- Governance, Risk, and Compliance (GRC): Create a clear, auditable trail from high-level regulations (like GDPR or HIPAA) down to the specific processes, applications, and technology that must be compliant.
How to Generate ArchiMate Diagrams with AI: Example Prompts
Effective communication with the AI is key.

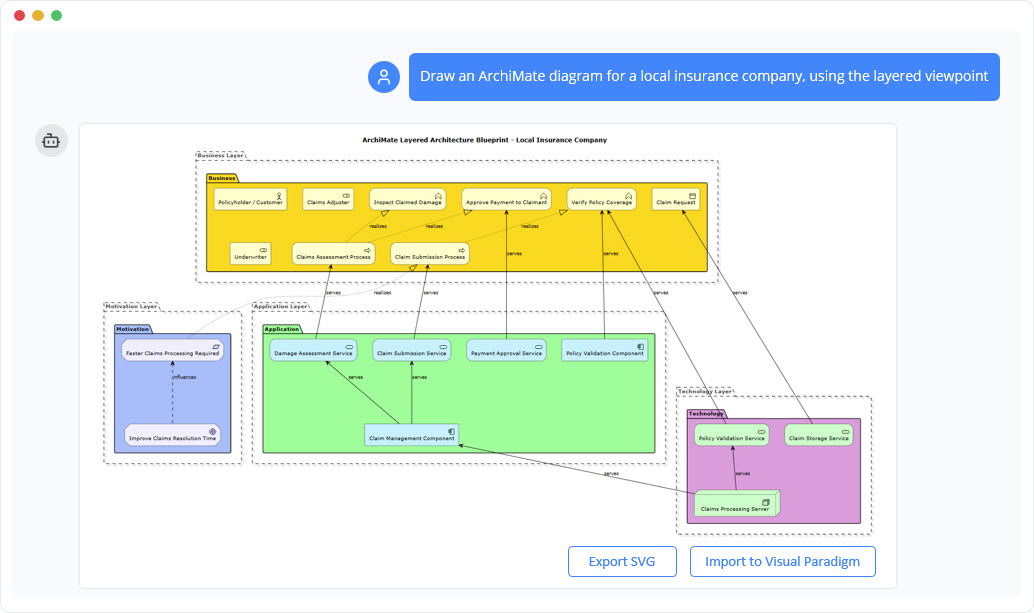

- Building the Layers: “Create a Business Layer diagram with a ‘Business Actor’ named ‘Client’ who uses a ‘Business Service’ named ‘Insurance Quoting’.”
- Connecting Layers: “In the Application Layer, show an ‘Application Component’ called ‘Quoting Engine’ that realizes the ‘Insurance Quoting’ service.”
- Adding Infrastructure: “In the Technology Layer, add a ‘Node’ called ‘Application Server’ which hosts the ‘Quoting Engine’ application.”
- Requesting Viewpoints: “Generate a Layered Viewpoint that shows the entire stack from the ‘Client’ actor down to the ‘Application Server’.”
- Running Analysis: “Based on the model, list all application components that serve the ‘Underwriting’ business process.”
A Modern Workflow for Enterprise Architecture
Adopt an AI-first approach to revolutionize your EA practice.
- Collaborative Modeling Workshops: Use the AI live in workshops with stakeholders to generate models in real-time, ensuring immediate feedback and alignment.
- On-Demand Viewpoint Generation: Maintain a core model. When a project manager or security officer needs a specific diagram, use the AI to generate the view they need, ensuring the information is always current.
- AI-Powered Impact Analysis: Before approving any significant change, make it a standard process to query the ArchiMate model using the AI. This “what-if” analysis is a critical part of change management.
Conclusion
ArchiMate provides the language for enterprises to understand themselves in an era of complex, constant change. AI provides the engine to use that language with fluency, speed, and intelligence. This powerful combination moves enterprise architecture from a slow, specialist discipline to an agile, inclusive, and indispensable part of strategic decision-making. By embracing an AI co-pilot, organizations can spend less time drawing and more time designing the resilient, agile, and aligned enterprise of the future.
